Introduction

The motherboard is the main printed circuit board (PCB) that connects and manages all major computer components such as the CPU, memory, storage, and peripheral interfaces. It determines the compatibility, upgrade potential, and overall performance of a computer system. Over the decades, motherboard design has evolved in size, layout, and functionality to support new technologies and diverse user needs. This study provides a comparative analysis of different types of motherboards, focusing on legacy, mainstream, compact, high-performance models, and BTX variants, highlighting their structure, advantages, and applications.

Legacy Motherboards (AT, LPX)

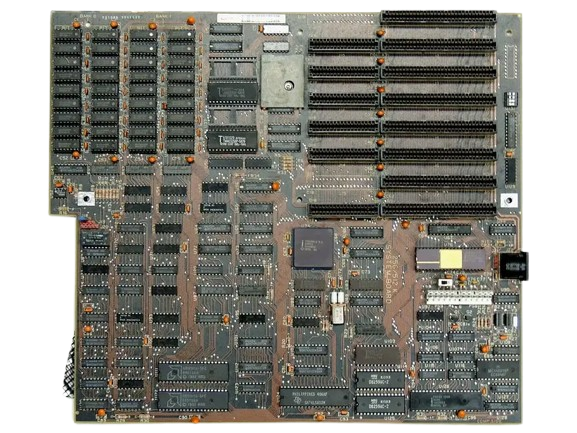

AT Motherboard

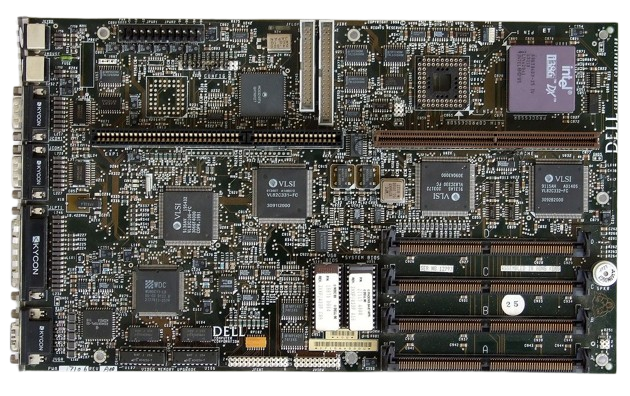

LPX Motherboard

Legacy motherboards include the AT (Advanced Technology) and LPX (Low-Profile eXtension) designs that were dominant during the 1980s and 1990s. The AT motherboard, introduced by IBM, featured large connectors and limited integration, making cable management and installation difficult. LPX boards improved case airflow by using riser cards for horizontal expansion, but their proprietary layout and limited upgrade options caused them to become obsolete (Intel Corporation, 2023). These early designs laid the foundation for modern standards but lacked flexibility, onboard features, and efficient power management.

Mainstream Motherboards (ATX, Micro-ATX, Standard ATX)

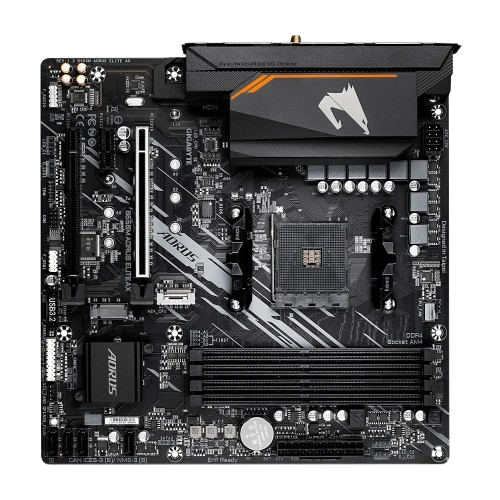

Micro-ATX

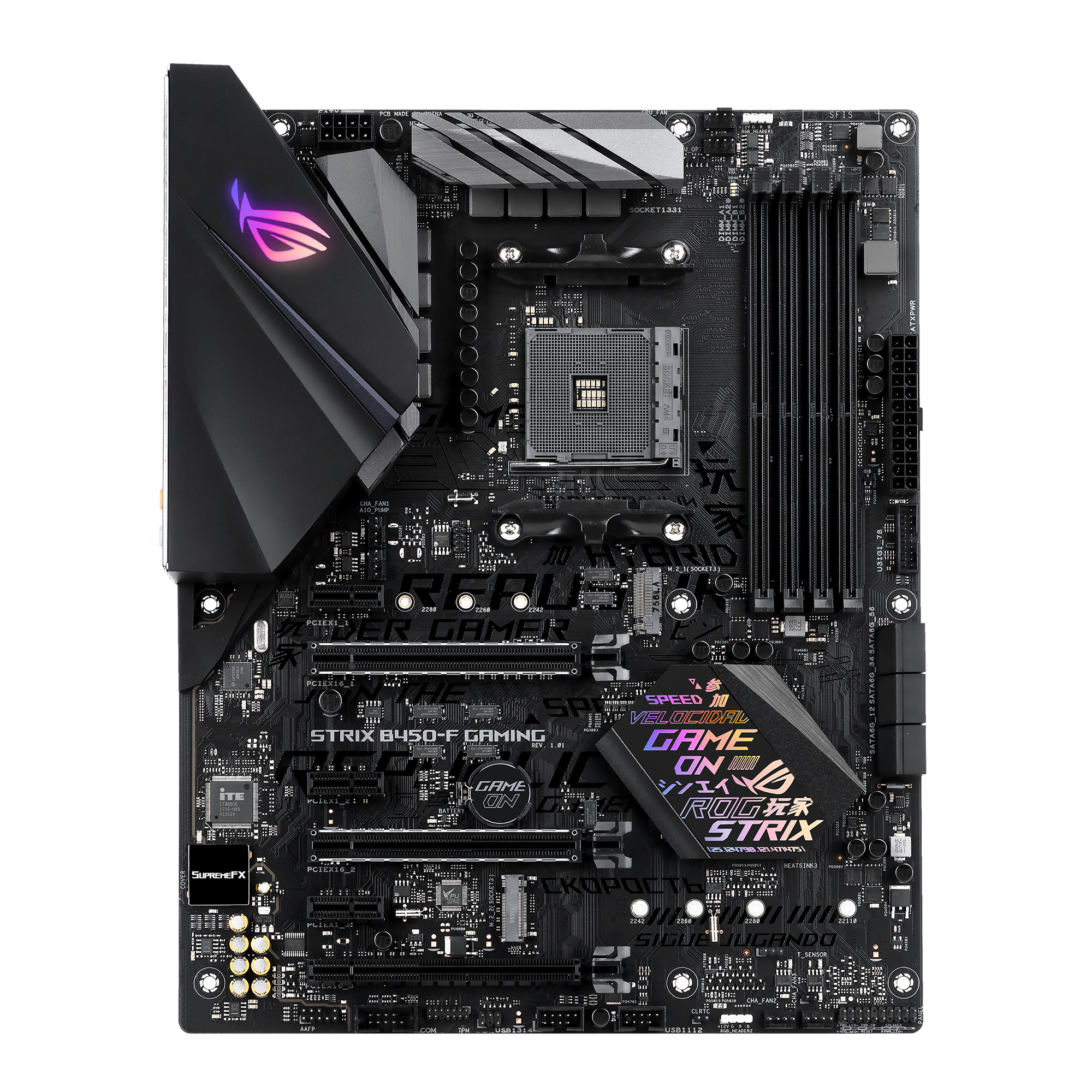

Standard ATX

The ATX (Advanced Technology eXtended) motherboard, introduced by Intel in 1995, replaced the AT design and remains the most widely adopted standard. It offers integrated I/O ports, improved component placement, and support for multiple RAM and PCIe slots. Micro-ATX and Mini-ATX variants provide more compact options while maintaining compatibility with standard components (Intel Corporation, 2023). ATX motherboards strike an effective balance between cost, size, and expandability, making them ideal for most consumer desktops and office computers.

Compact Motherboards (Mini ITX, Pico BTX)

Mini-ITX, developed by VIA Technologies in 2001, is one of the smallest motherboard standards, measuring only 170 × 170 mm. Despite its small size, it supports modern processors, SSDs, and built-in connectivity such as Wi-Fi and Bluetooth (Wikipedia contributors, n.d.; Circuit Cellar, 2019). These motherboards are commonly used in small form-factor (SFF) builds, home theater PCs, and embedded systems where space efficiency and low power consumption are priorities. However, their limited expansion slots and memory capacity restrict high-end customization.

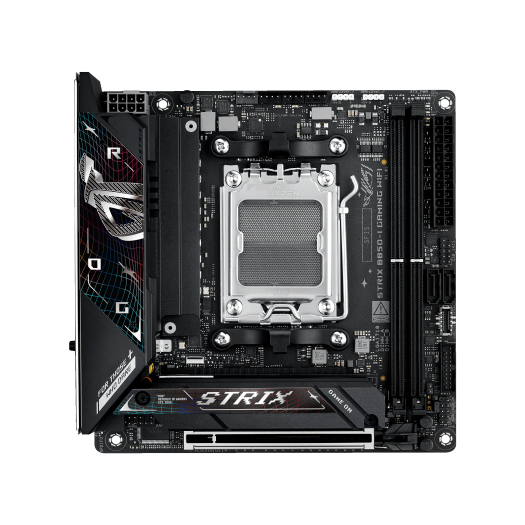

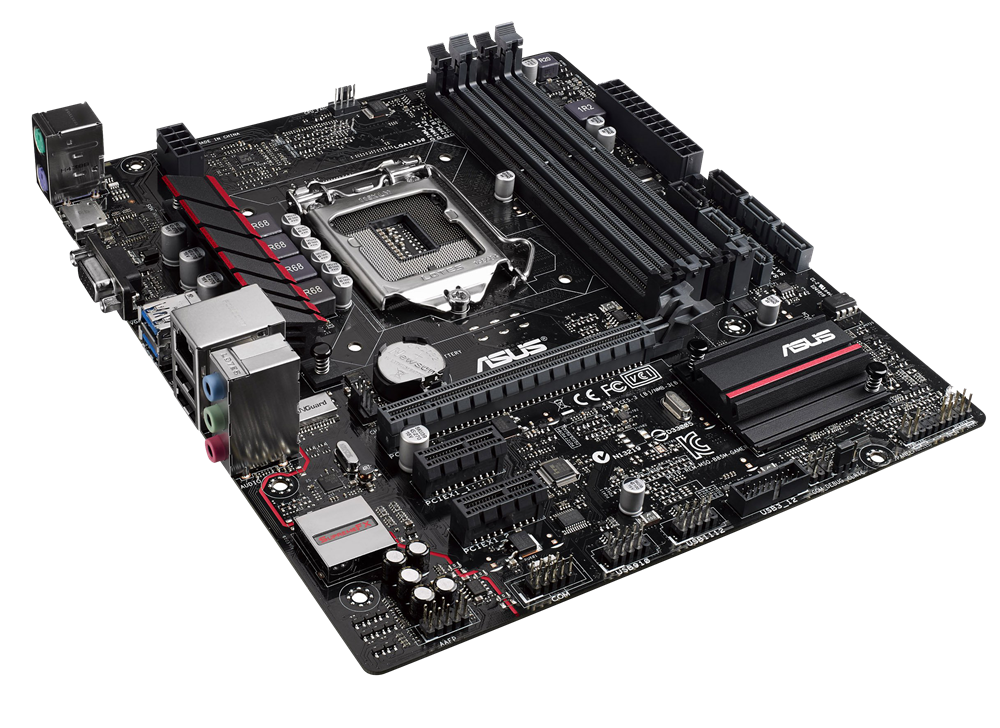

Mini ITX

Pico BTX

High-Performance Motherboards (Extended ATX)

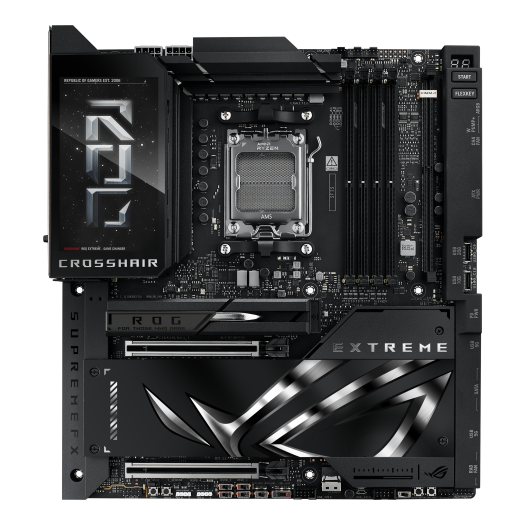

Extended ATX

The Extended-ATX (E-ATX) motherboard is designed for professional workstations and high-end gaming systems that demand maximum expandability. These boards typically feature dual CPU sockets, numerous DIMM slots for large memory capacities, and multiple PCIe x16 lanes for multi-GPU setups (Intel Corporation, 2023). Enhanced chipset support and superior thermal design make E-ATX motherboards the top choice for heavy computational workloads such as 3D rendering, data science, and server applications.

BTX and Its Variants (BTX, Pico BTX)

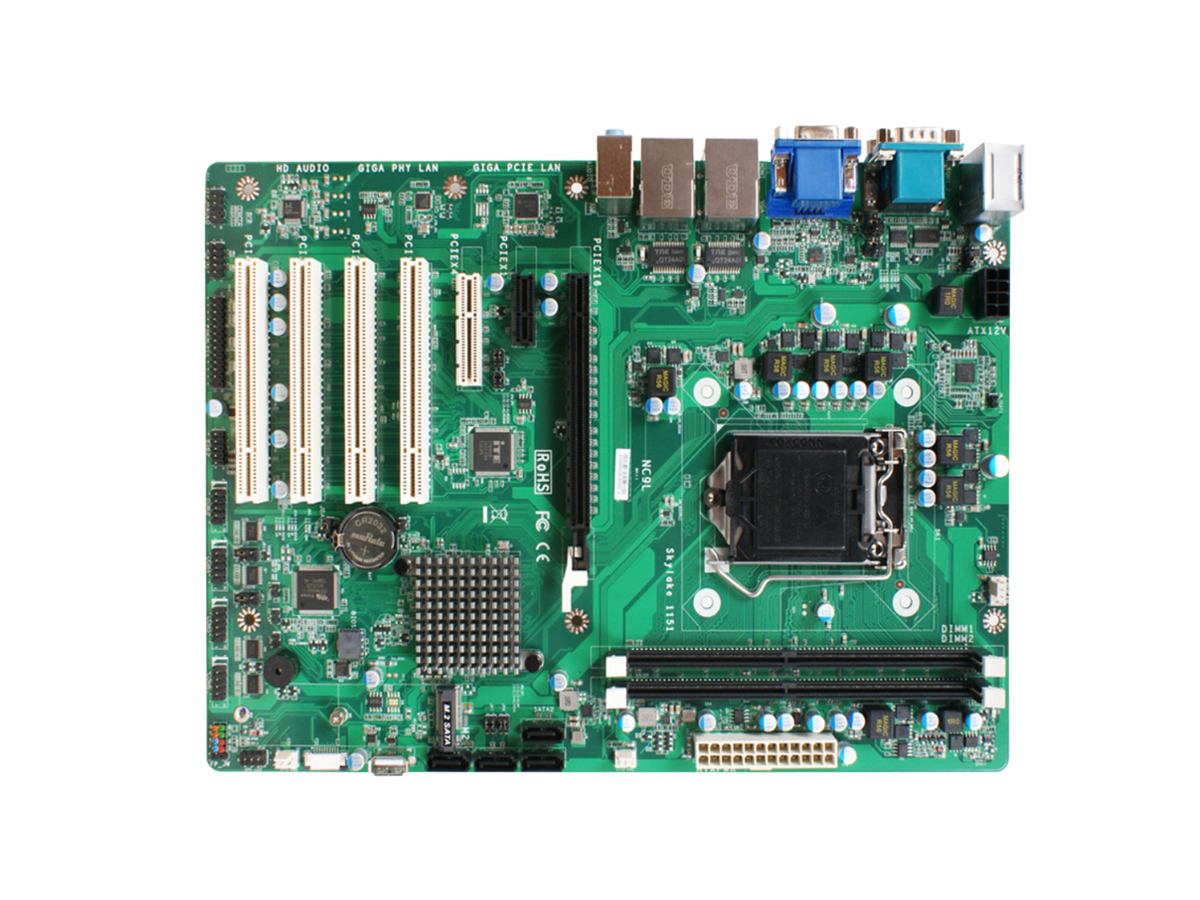

Intel introduced the BTX (Balanced Technology eXtended) form factor in the early 2000s to address airflow and thermal inefficiencies present in ATX designs. BTX repositioned components for optimized cooling and airflow paths across the CPU and GPU (PCTechGuide, n.d.; EE Times, n.d.). Variants such as Micro-BTX and Pico-BTX aimed to scale the BTX standard for smaller enclosures, with Pico-BTX supporting one or two expansion slots (AnandTech, n.d.). Despite its technical improvements, BTX failed to gain industry traction due to limited manufacturer adoption and backward-compatibility issues (PCTechGuide, n.d.; EE Times, n.d.).

Comparative Table of Motherboard Form Factors
